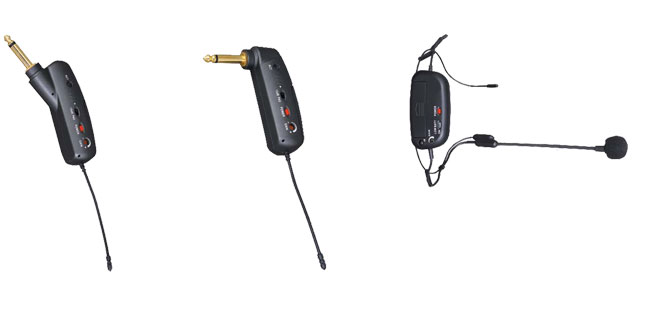

UHF/PLL Instrument Wireless Receiver
* Avoid the dead spot in the working distance，Strong anti-jamming interference.
*Carrier frequency: UHF 600-900MHz
*Multi-function LCD display,Showing RF&AF signal level and battery voltage
*With IR function,be used IR switcher searching IR signal.
*Each channel with 100 frequencies adjustable,be push UP or DOWN free to selection.
* PLL system,CPU control technical.
*Frequency stability:±3ppm
*S/N ratio:>110dB
*Total Harmonic Distortion:<0.5%
*Mute mode:Noise+tone code squelch control lock squelch control navigation
*Frequency response：50Hz-15KHz±3dB
*Input power voltage:DC 3V,450mA,Battery voltage:2*AA 1.5V battery.
*With the rechargable function.
UF-38HS UF-28 UF-18 Transmitter
*Carrier frequency: UHF600-900MHz
*With 100 frequencies adjustable,Automatic frequency searched by IR function.
*PLL system,CPU control technical.
*Frequency stability:±3ppm
*Spurious rejection:<-60dBc
*RF output power:5mW
*Max.deviation range:±45KHz
*Frequency response:50Hz-15KHz±3dB
*T.H.D:<0.5%
*Sensitivity selection:0dB or -10dB
*Modulation Type:FM
*Battery Voltage:3V(2*1.5V AA battery),Continuous Using:8 hours
