UHF/PLL TABLE TRANSMITTER(STEREO)
Avoid the dead spot in the working distance，Strong anti-jamming interference.
Multi-function LCD display,Showing RF&AF signal level,Stereo/Mono shift change.
With IR function,be used IR switcher searching IR signal.
Each channel with 100 frequencies adjustable,be push UP or DOWN free to selection.
|
Oscillation:
|
PLL system,CPU control technical
|
|
Carrier frequency:
|
UHF 600-900MHz
|
|
Frequency stability:
|
±3ppm
|
|
RF output power:
|
10mW-500mW be selectable.
|
|
Power:
|
outer power, DC:13.8V,850mA
|
|
|
|

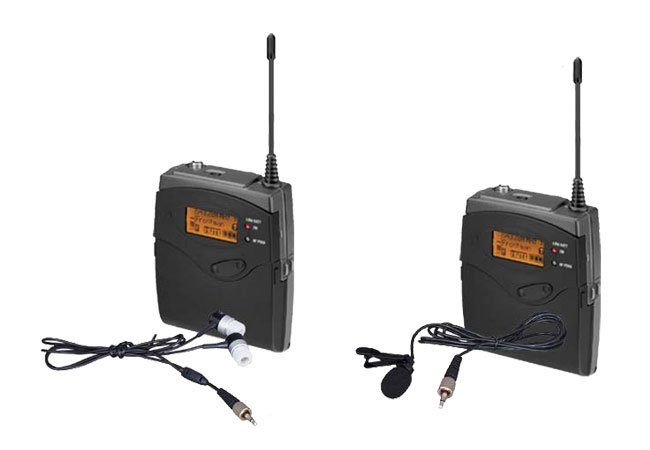

UF-20R UF-20B RECEIVER
With multi-function LCD display,showing the RF&AF signal level and battery voltage.
With the AF Volume controller.
With 100 frequencies adjustable,Automatic frequency searched by IR function.
|
Oscillation:
|
PLL system,CPU control technical
|
|
Carrier frequency:
|
UHF 600-900MHz
|
|
AF output change:
|
earphone/line output
|
|
Frequency stability:
|
±3ppm
|
|
Frequency Response:
|
50Hz-15KHz±3dB
|
|
Battery voltage:
|
3V(2*1.5V AA battery),Continuous Using:8 hours
|
