ULX-88III |
|
| Product name：ULX-88III |
| Item： |
| Details： |
VHF DOUBLE CHANNELS RECEIVER
|
Carrier frequency:
|
VHF 170-270MHz
|
|
Modulation Mode:
|
FM
|
|
Oscillation:
|
Quartz Controlled Fixed Frequency
|
|
Frequency stabilization:
|
<±30ppm
|
|
Dynamic Range:
|
>90dB
|
|
S/N ratio:
|
>100dB
|
|
Total Harmonic Distortion:
|
<0.8%@1KHz
|
|
Frequency Response:
|
40Hz-15KHz±3dB
|
|
Sensitivity:
|
5dBuV
|
|
Image&Spurious Rejection:
|
>85dB
|
|
Ideal distance:
|
40m,the Open place distance:more than 80m
|

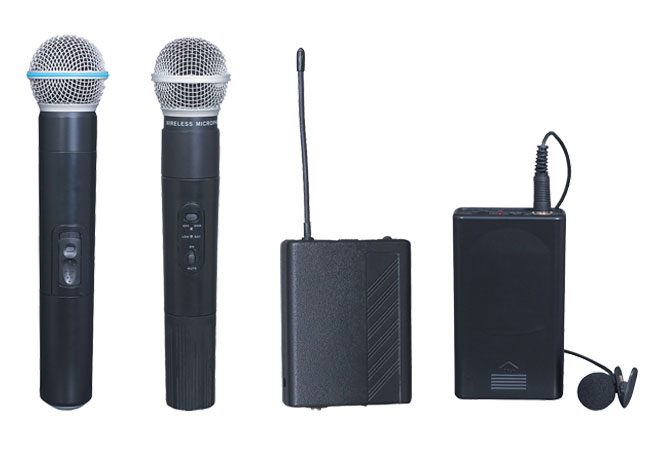

VF-58H VF-30H VF-3B VF-6B Transmitter
|
Carrier frequency:
|
VHF 170-270MHz
|
|
Modulation Mode:
|
FM
|
|
Transmitter Power:
|
10mW
|
|
Oscillation:
|
Quartz Controlled Fixed Frequency
|
|
Max.Deviation Range:
|
±25KHz
|
|
Harmonic Radiation:
|
<-50dBm
|
|
Current Consumption:
|
<28mA
|
|
Batter voltage:
|
1*9V battery or 2*1.5V AA battery,Continuous Using:6 Hours
|
|
Emitter type:
|
handled；bodypack
|
|
 |
