UHF SINGLE CHANNEL RECEIVER
With the LCD display,Showing the frequency.
With the ECHO function.
|
Oscillation:
|
Quartz Controlled Fixed Frequency
|
|
S/N ratio:
|
>100dB
|
|
Total Harmonic Distortion:
|
<0.8%@1KHz
|
|
Dynamic Range:
|
>90dB
|
|
Frequency Response:
|
50Hz-15KHz±3dB
|
|
Sensitivity:
|
50m,the Open place distance:more than 80m
|

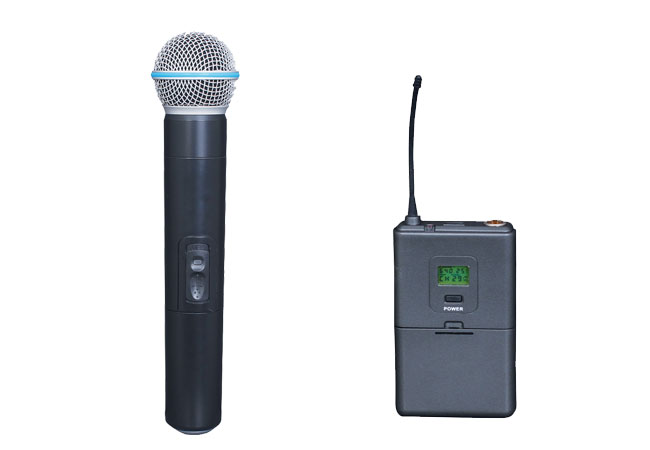

UF-58H UF-50B Transmitter
Quartz-controlled fixed frequency.
|
Carrier frequency:
|
UHF 600-900MHz
|
|
Transmitter Power:
|
10mW
|
|
Modulation Mode:
|
FM
|
|
Harmonic Radiation:
|
<-50dBm
|
|
Max.Devitation Range:
|
±45KHz
|
|
Battery type:
|
1*9V battery/2*1.5V AA battery
|
|
Battery workingtime:
|
≥6 hours
|
|
Current Consumption:
|
<28mA
|
|
Emitter type:
|
|
