UHF/PLL FOUR CHANNELS RECEIVER
Avoid the dead spot in the working distance，Strong anti-jamming interference.Multi-function LCD display,Showing RF&AF signal level and transmitter’s battery voltage. With IR function,be used SET switcher searching IR signal.Each channel with 100 frequencies adjustable,be push UP or DOWN free to selection.With the sensitivity of receiver selection switcher.Noise locked+pilot tone locked.
|
Oscillation:
|
PLL system,CPU control technical
|
|
Carrier frequency:
|
UHF 600-900MHz
|
|
S/N ratio:
|
>110dB
|
|
Total Harmonic Distortion:
|
<0.5%
|
|
Frequency Response:
|
50Hz-15KHz±3dB
|
|
Ideal distance:
|
60m,the Open place distance:more than 100m
|

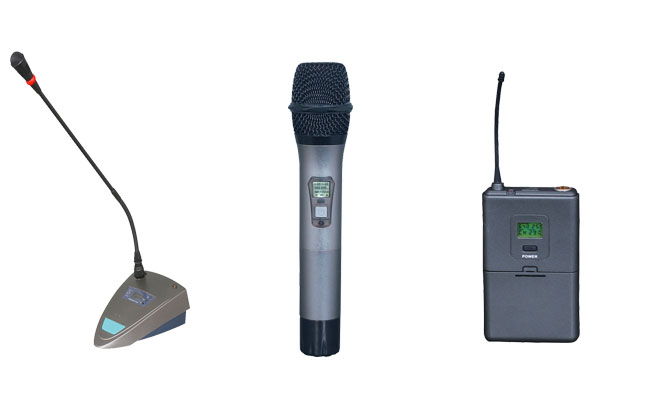

UF-80C UF-30H UF-50B Transmitter
With multi-function LCD display,showing the RF&AF signal level and transmitter’s battery voltage.With 100 frequencies adjustable,Automatic frequency searched by IR function.
|
Oscillation:
|
PLL system,CPU control technical
|
|
Carrier frequency:
|
UHF 600-900MHz
|
|
Frequency stability:
|
±3ppm
|
|
Spurious Emission:
|
>60dB
|
|
Transmitter Power:
|
10mW
|
|
Modulation Type:
|
FM
|
|
Battery Voltage:
|
3V(2*1.5V AA battery),Continuous Using:8 hours
|
|
Emitter type:
|
|
