UHF/PLL DOUBLE CHANNELS RECEIVER/TRUE DIVERSITY
Avoid the dead spot in the working distance，Strong anti-jamming interference.
Digital pilot control circuit.
Multi-function LCD display,Showing RF&AF signal level and transmitter’s battery voltage .
With IR function,be used SET switcher searching IR signal.
Each channel with 100 frequencies adjustable,be push UP or DOWN free to selection.
With Auto-scan function,Automatic searching the avaliable frequency without interference.
Noise locked+pilot tone locked.
True Diversity.
|
Oscillation:
|
PLL system,CPU control technical
|
|
Carrier frequency:
|
UHF 600-900MHz
|
|
S/N ratio:
|
>110dB
|
|
Total Harmonic Distortion:
|
<0.5%
|
|
Frequency Response:
|
50Hz-15KHz±3dB
|
|
Ideal distance:
|
60m,the Open place distance:more than 100m
|

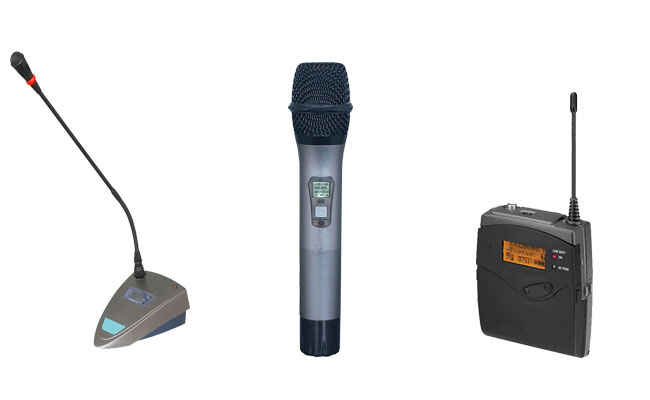

UF-80C UF-60H UF-20B Transmitter
Digital pilot control circuit.
With multi-function LCD display,showing the RF&AF signal level and transmitter’s battery voltage.
With 100 frequencies adjustable,Automatic frequency searched by IR function.
|
Oscillation:
|
PLL system,CPU control technical
|
|
Carrier frequency:
|
UHF 600-900MHz
|
|
Frequency stability:
|
±3ppm
|
|
Spurious Emission:
|
>60dB
|
|
Transmitter Power:
|
10mW
|
|
Modulation Type:
|
FM
|
|
Battery Voltage:
|
3V(2*1.5V AA battery),Continuous Using:8 hours
|
|
Emitter type:
|
|
